The radiator overflow tank, sometimes called the coolant reservoir or expansion tank, is a small but crucial component in a vehicle’s cooling system. Though often overlooked, it plays an essential role in maintaining engine temperature, preventing coolant loss, and protecting the engine from overheating or damage. Understanding how the overflow tank works, signs of failure, and proper maintenance can help prolong your vehicle’s engine life and avoid costly repairs.
What is a Radiator Overflow Tank?

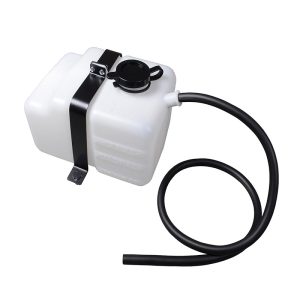

The radiator overflow tank is a separate plastic or metal container connected to the radiator by a small hose. It collects excess coolant that expands and spills over when the engine heats up, and then returns the coolant back to the radiator when the engine cools down and the coolant contracts.
Unlike older open cooling systems that vent excess pressure directly to the atmosphere, modern closed cooling systems use the overflow tank to:
-
Maintain proper coolant levels automatically
-
Prevent air from entering the system
-
Manage pressure changes in the cooling system safely
How the Radiator Overflow Tank Works
When the engine runs, the coolant heats up and expands. Since liquids are incompressible, this increased volume and pressure would damage the radiator or hoses if there was no safety valve. The overflow tank works alongside the radiator cap, which contains a pressure relief valve, to control this pressure.
Key stages:
| Stage | What Happens | Role of Overflow Tank |
|---|---|---|
| Engine warms up | Coolant expands, pressure rises | Excess coolant flows into tank |
| Pressure reaches limit | Radiator cap opens valve | Prevents system damage |
| Engine cools down | Coolant contracts, pressure drops | Vacuum pulls coolant back to radiator |
| System at rest | Proper coolant level maintained | Overflow tank stores excess fluid |
The overflow tank is partially transparent or marked with min/max lines so drivers or mechanics can easily check coolant levels without opening the radiator cap, which can be dangerous when hot.
Why Radiator Overflow Tanks are Important
The overflow tank protects the engine and cooling system in several ways:
-
Prevents Coolant Loss: Collects excess coolant instead of letting it spill onto the ground, maintaining fluid volume.
-
Avoids Air Ingress: Returns coolant automatically, preventing air pockets which reduce cooling efficiency and can cause engine hot spots.
-
Reduces Pressure Stress: Works with the radiator cap valve to release excess pressure safely, preventing hose bursts or radiator damage.
-
Eases Maintenance: Makes it easier to check coolant levels and top up without opening the pressurized radiator cap.
-
Enhances System Longevity: Proper pressure and coolant balance reduce wear on hoses, water pumps, and radiator cores.
Signs of Radiator Overflow Tank Problems
Over time, overflow tanks can fail due to heat, vibration, or physical damage. Common signs that your overflow tank needs attention include:
-
Cracks or Leaks: Coolant puddles near the tank or visible cracks in the plastic.
-
Low Coolant Levels: Constantly needing to top off coolant in the reservoir may signal leaks or a failing tank.
-
Coolant Discoloration: Rusty or contaminated coolant in the tank suggests corrosion or old coolant.
-
Engine Overheating: Loss of coolant circulation can cause overheating or fluctuating temperature readings.
-
Pressure Problems: Swollen or burst hoses, or radiator cap issues related to tank malfunction.
How to Maintain and Replace Overflow Tanks
Maintaining your overflow tank is straightforward but critical:
Maintenance Checklist:
-
Inspect the tank for cracks or damage every 10,000 km or during routine coolant changes.
-
Check coolant levels regularly when the engine is cold—levels should be between the min and max marks.
-
Use the correct coolant recommended by your vehicle manufacturer to avoid corrosion.
-
Replace the radiator cap as per maintenance schedule to ensure proper pressure control.
Replacement Tips:
| Step | Guidance |
|---|---|
| Allow engine to cool | Never open the cap or tank when hot to avoid burns. |
| Drain coolant | Catch coolant in a clean container for reuse or disposal. |
| Remove old tank | Disconnect hoses and mounting hardware carefully. |
| Install new tank | Match OEM specifications or high-quality aftermarket parts. |
| Reconnect hoses | Ensure tight clamps and no leaks. |
| Refill coolant | Fill reservoir to the proper level with correct coolant. |
| Bleed air | Follow vehicle-specific procedures to remove trapped air. |
Common Types of Radiator Overflow Tanks
Radiator overflow tanks vary by vehicle make and design:
| Type | Material | Typical Features | Use Case |
|---|---|---|---|
| Plastic Tank | High-temperature plastic | Transparent with level marks, lightweight | Most modern passenger cars |
| Metal Tank | Aluminum or steel | Durable, often used in heavy-duty or older cars | Trucks, performance vehicles |
| Integrated Tanks | Part of radiator assembly | Combined with radiator for compact design | Some newer or high-performance cars |
The Importance of Using Quality Components
Using high-quality replacement parts for your overflow tank and related components ensures reliability and safety. Inferior tanks can crack or deform quickly, leading to coolant leaks and engine damage.
You can find a variety of reliable, vehicle-specific radiator overflow tanks and components at trusted suppliers.
Buy Header/Overflow Tanks online
Frequently Asked Questions (FAQs)
Q1: Can I drive without a radiator overflow tank?
A1: It’s not recommended. Without an overflow tank, coolant loss and pressure buildup can lead to overheating and serious engine damage.
Q2: How often should I replace the overflow tank?
A2: Usually every 5-7 years or when cracks, leaks, or discoloration appear.
Q3: What coolant should I use in the overflow tank?
A3: Use the type recommended by your vehicle manufacturer — usually a specific mix of antifreeze and water.
Summary
The radiator overflow tank is a vital safeguard for your vehicle’s cooling system, protecting the engine from overheating, coolant loss, and pressure damage. Proper maintenance, timely inspection, and replacement with quality components ensure your engine stays cool and runs efficiently.
Remember to check your overflow tank regularly as part of routine vehicle maintenance, and don’t hesitate to upgrade to reliable parts when needed.
Protect your engine and keep your cooling system in top shape.
